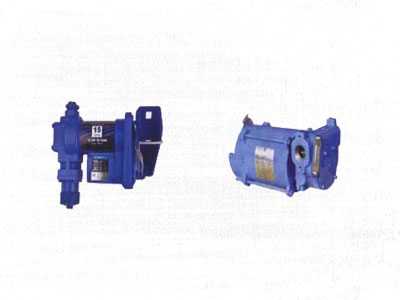

EX PROOF DC POWERED PUMP
MODEL:DCEX56 / DCEX75

This 12v ex-proof pump is especially for fueling the GASOLINE,(Diesel&Petrol) And its pump head with iron material, and with 100% copper lining, its specification as follows.
A. With Ex-proof protection.(CMRICERTIFICATE IS NOT AVAILABLE)
B. Pump with by pass and self priming.
C. Thermal overloads protection.
D. Filter and connectors
E. 30-minute duty cycle/ not for continuousoperatio

MODEL:- ACEX 70

220 V Ex Proof Pump Vane Pump ideal for Diesel & LPG

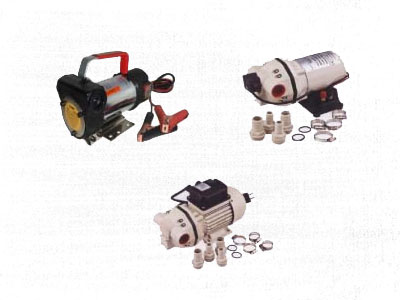

vELECTRIC TRANSFER PUMP (DCTP-40/ 80)

MODEL DCTP-40 DCTP-80
VOLT DC12V/24V DC 12V
POWER 200 WATT 250 WATT
MAXIMUM HEAD 15 MT 15 MT
INLET X OUTLET SIZE ¾ " X ¾ " 1" X 1"
MAXIMUM SUCTION 5 MT 5 MT

ADBLUE PUMP
MODEL:- ACAD 40 / DCAD40

A. Permanent magnet and continuous duty.
B. Inbuilt -Pressure switch automatically starts and stops pump when faucets is opened and closed.
C. Self priming so pump can be located above water tank / drum D. Runs dry for extended periods of time without damage.
E. Ideal for drum application.
F. Suitable for oil diesel and light acids. Not suitable for petrol, solvents and chemicals which affect on properties of plastic and rubber

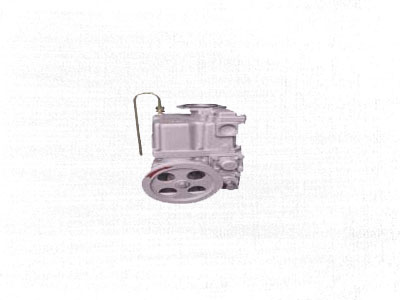

ROTARY VANE PUMP

ZYB-50/ ZYB-80V an epump built in air separator,by pass valve,filteris with threed if ferent top covers for different connecting pipes.A type,B type and C type.With the advantage of low noise,high flowrate,long life services etc..

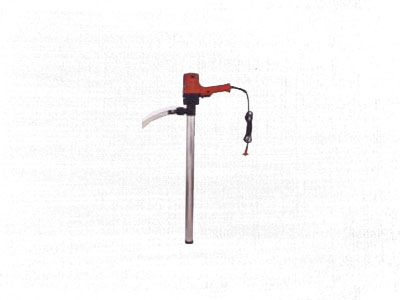

BARREL PUMP

MODEL FLOW
L/MIN
HEAD
IN MTRS
POWER
KW
SIZE
MM
IMPELLER/
OUT LET
MATERIAL
PUMP
TUBE
MATERIAL
MBALSB-2 110 7 mtr 1.1 50/25 plastic ALUMINIUM

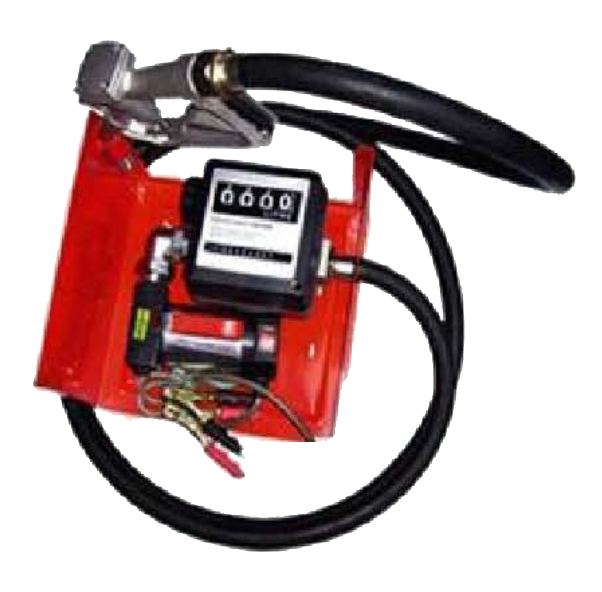

DIESEL TRANSFER SYSTEM "DCFD-60" / "ACFD-60"



DIESEL TRANSFER SYSTEM

DESCRIPTION

Suction Χ Delivery: 1" Χ 1'

Self priming pump with Bypass arrangement

Flow : 60L / min

Head -10m, Suction-4m

Power : 300 W

Speed : 2800 Rpm

Voltage : DC 12V/210 Volt ac



Material : Cast iron vane type pump

Rating : Suitable For 30 minutes continuous Working in DC Moter

Suitable for continuous application in AC Motor

RESET TYPE 4 DIGIT MECHANICAL METER

NOT SUITABLE FOR PETROL & CHEMICALS.

REMARKS

  • For Diesel / oil and Kerosene only, pump + 4 mt delivery hose, + flow meter + manual nozzle + bracket
  • Measurement : 42 Χ 36 Χ 32.5 cm
  • Gross weight : 12.5 Kg.
  • We also provide diesel tank along with pump metering system for mining and transport industries.



FUEL TRANSFER NOZZLE

FUEL TRANSFER NOZZLE
FUEL TRANSFER NOZZLE
FUEL TRANSFER NOZZLE

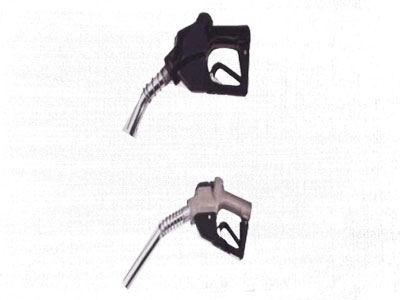

MODEL : AC-120:-

AC-120 Automatic nozzles are made of
alloy aluminumheavy-duty high flow nozzle,for fueling truck,bus etc this is low cost nozzle with onglife, max flowis 120LPM

MODEL AC-120 AC-150
INLET THREAD BSPF/NPT 1" BSPF/NPT 1"
DIAMETER OF SPOUT 1" 1"
NET WEIGHT 17 kg 14 kg
GROSS WEIGHT 18 kg 15 kg
DIMENSION 420 x 340 x 400 mm 420 x 340 x 400 mm

MODEL : AC-150:-

Longer Spout auto nozzle with high flow,bulk fuel oil delivery service, the biggest advantages is with longer spout , it is used for filling truck, big bus.
Flow rate:- 150 lpm,
Spout Length :- 350 mm,
Inlet x Out let :- 1" X 1"

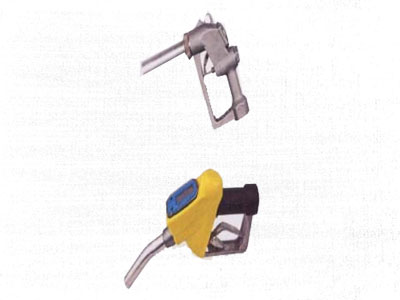

MODEL : AC-200

AC-200 Automatic Nozzles are made of alloy aluminum and designed with big flow rate, and the max flow rate is 260 lpm

MODEL AC-200
FLOWRATE 260 LPM
INLET BSPF/NPT 1.5*
PACKAGE 10 pcs / Carton
NET WEIGHT 24 kg
GROSS WEIGHT 25 kg
DIMENSION 350 x 350 x 520 mm

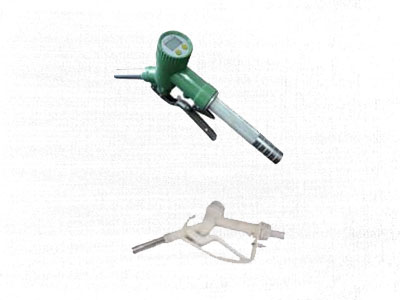

TURBINE MEASURING NOZZLE AC-15A

Screw turbine type measuring nozzleis the meter to measure volume flowo fliquid flowing through turbine. For gasoline , kerosene , fuelingdiesel etc.The best advantageis that we can re-correct the error according to different medium. Measured media.Gasoline,If the medium is kerosene , diesel , we should correct it according to the measuring tank,for more correcting details,pleasecheck according to the product instruction

ELECTRONIC MANUAL NOZZLE (TP1619)

MODEL TP1619
INLET THREAD BSPF/NPT3/4" , 1" , 1.5"
DIAMETER OF SPOUT ¾"
FLOW METER (LPM) 0-200
PCS / CTN 10
N.W. KGS 11
G.W. KGS 12
PACKING SIZE (cm) 50*40*44

CHEMICAL NOZZLE
MODEL : AC-5000 / AC-6000

For AC-5000 , AC-6000 Manual Plastic Nozzles are made of PP , EDPM and Designed with today's customer in mind . Inlet ¾" and Outlet is ¾ " and it can fill kind of chemical material. Ad blue urea especially use in farm
