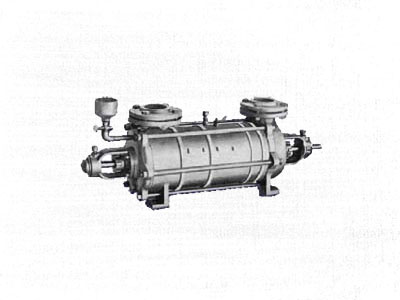

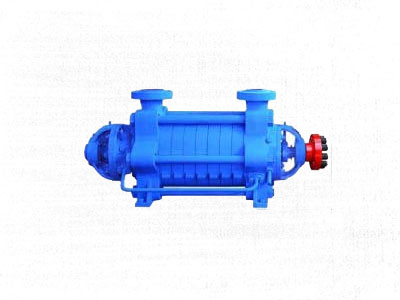

Horizontal Multistage Centrifugal Pumps

Horizontal Multistage Centrifugal Pumps
Horizontal Multistage Centrifugal Pumps



Features:

  • Vertically split suction. intermediate and discharge casings clamped together by external tie bolt and sealed with gaskets or 'O' ring as required by the design, pumping temperature of the liquid pumped and the construction of the pump
  • Grease lubricated Antifriction Bearings designed to meet the requirements mounted on either side
  • Pump uses soft graphite lubricated asbestos. The shaft is fitted with renewable shaft sleeve in the region of the stuffing box, which protects the shaft from wear due to packing. Special water-jacketed stuffing boxes, and special design of stuffing boxes with mechanical seals are available
  • The discharge nozzle is top vertical. Suction nozzle horizontal located on the right hand side, left hand side or central position when viewed from the driving end Is available. The flanges are round corresponding to international standards
  • The direction of rotation is clockwise as viewed from the driving end



Applications and Industries:

  • Irrigation - Sprinkler Installations
  • Pressure Boosting - Multistage story Building - Hydro - Pneumatic
  • Water Works Fire Fighting - Mining wash down Applications
  • Hydraulic press / Circuits transfer & circulation hot & cold water
  • Boiler feed pumps - Condensate pumps

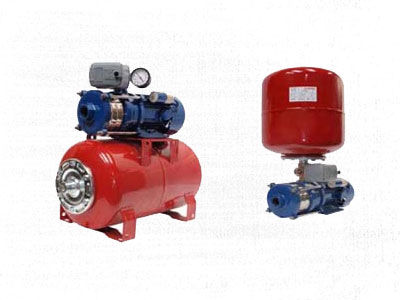

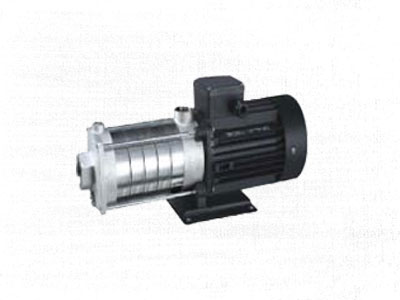

Horizontal Multistage Centrifugal Pumps
Horizontal Multistage Centrifugal Pumps
Horizontal Multistage Centrifugal Pumps



Applications:

  • Feed Pumps for R.O. System
  • Pressure Boosting Systems
  • Pressure Jet-Cleanin,
  • Water Distribution
  • Refrigerant Recycling
  • Very Light and Non Aggressive Chemicals Transfer.
  • Drip Irrigation System.



Connection And Working Range:-:

  • Connections : 1" BSP Female Thread,
  • Working Pressure kg/cm2 : 1 to 7
  • Temp Range șc : -15 to 75
  • Maximum Ambient Temperature : 50șc

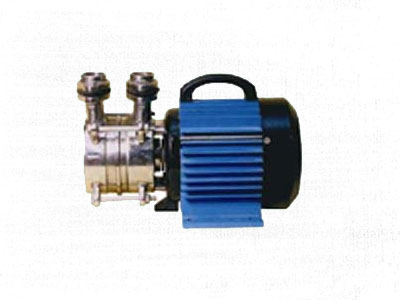

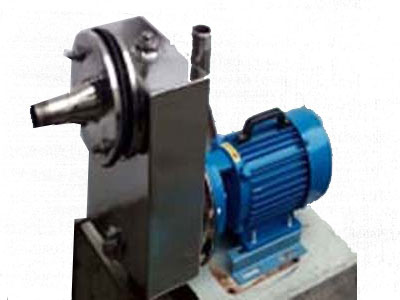

Horizontal Multistage Centrifugal Pumps
Horizontal Multistage Centrifugal Pumps



Features:

  • All wetted parts of pumps are made from lost wax process (investment casting), so excellent surface finish. smooth flow path/ hydraulic passage and no casting defects like blow holes, cracks etc.
  • Centripetal / regenerative impeller for better suction
  • Also available with 120 Volt / 60 Hz.
    Custom built pumps available
  • Pumps will be normally available in CF-8m /CF-8 (Gun metal, Alloy-20) and also in other material as fee customer's requirements.
  • Able to handle temperature up to 80 C
  • Pump can be offered with electro polishing for some special Requirements.
  • All motors are of "TCFC" type
  • Pumps are available in monobloc and in bare type also with flameproof motor.
  • Normally fitted with carbon/ceramic seal faces with teflon cup and viton rubber.
  • Various types of sealing arrangements as per customer's liquid characteristics
  • Very high suction capacity up to 8 meters without much noise
  • Very quick priming, no need of foot valves.
  • Single /multistage pumps to handle crystal cleat liquids for high pressure duties

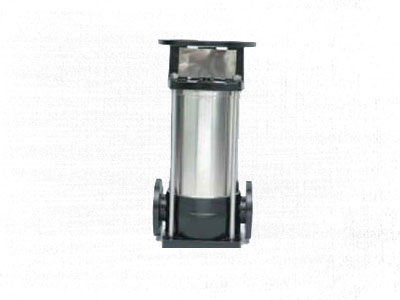

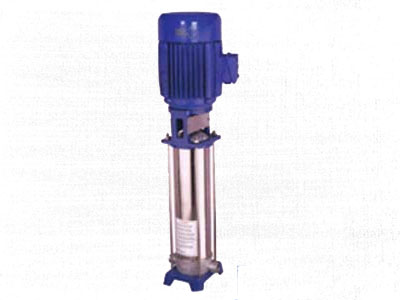

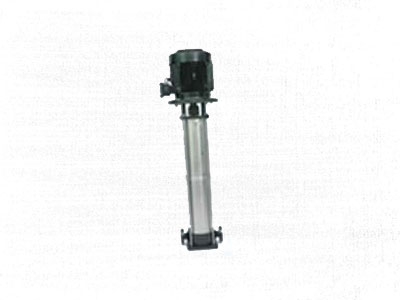

Vertical Multistage Pumps

Vertical Multistage Pumps
Vertical Multistage Pumps
Vertical Multistage Pumps



Features:

  • Highly Efficient Hydraulics Design
  • Fabricated Components
  • Less Friction in system (Pressed Components)
  • No Expensive Foundation Required
  • Easy Installations
  • Small Floor Space

Range:

  • Range: 1" BSP Female Thread,
  • Maximum Head ...280 Meter.
  • Maximum Capacity . 90 M3/HR
  • Suction X Delivery Sizes :32 X 32 MM
  • Can Handle Liquids Up to 120șC



Applications:

  • Vertical multistage centrifugal pumps type MC are designed for a wide range of applications.
  • Water supply systems.
  • Water Circulation /Water Treatment Plant
  • Hydro Pneumatic Systems / Condensate transfer.
  • Agriculture /Industrial Washing
  • Coolant Circulation.
  • Boiler Feeding / Fire Fighting / Booster Applications.
  • Ship Building / RO-DM Plants.
  • Sprinkle Irrigation.
