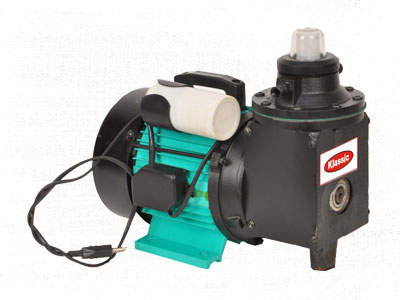

AC LPG Pumps



AC LPG Pumps



Material Of Construction:

Standard Cast Iron Construction



Scope Of Supply:

Ac lpg Pump With Suction and Delivery Pipes with Valve, Regulator and extra Diaphragmn

AC LPG Pump Techanical Secification:

  • Pump Type : AC (Electric supply) LPG Diaphragm Pump
  • Pump Make : Klassic
  • Pump Model : MD-AC-1
  • Suction x Delivery Sizes : - " x "
  • Pump Capacity : 15 kg/7 Minute I.E 2.14 kg/Minute
  • Maximum Pressure : 22 kg/cm2
  • Pump Weight : 16 kg approx



AC Motor Specifications:

0.5 hp x 1450 rpm , Non Flame Proof Motor Totally enclosed Fan cooled Squirrel cage Induction Motors Horizontal Foot mounted B3 Construction, Continuously rated S1 Duty suitable for single phase , 220 volts , 50 Hz , AC Supply (110 volts or 60 Hz Available on request) with ambient 45c & class "F" Insulation.

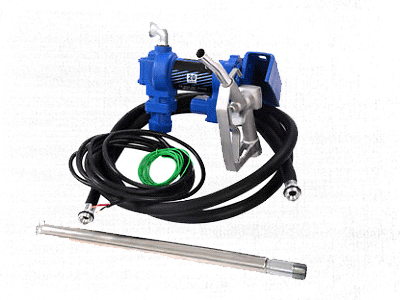

DC LPG Pumps



DC LPG Pumps



Material Of Construction:

Standard Cast Iorn Construction,



Scope Of Supply:

Dc lpg Pump With Suction and Delivery Pipes with Valve, Regulator and extra Diaphragm.

AC LPG Pump Techanical Secification:

  • Pump Type :12 Volt DC (Battery Operated ) LPG Diaphragm Pump
  • Pump Make :Klassic
  • Pump Model : MD-DC-1
  • Suction x Delivery Sizes : - " x "
  • Pump Capacity : 15 kg/7 Minute I.E 2.14 kg/Minute
  • Maximum Pressure : 22 kg/cm2
  • Pump Weight : 16 kg approx



DC Motor Specifications:

12 Volt DC PMDC Motor suitable for above pump, Take approximately 3 ampere current.

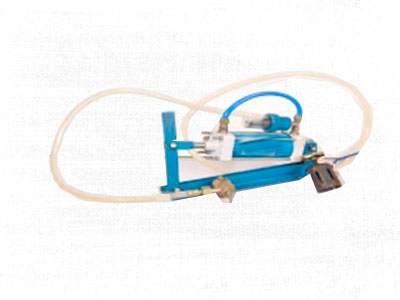

Manual LPG Pumps



Manual LPG Pumps



Material Of Construction:

Standard Cast Iron Construction



Scope Of Supply:

Manual lpg Pump With Suction and Delivery Pipes with Valve , Regulator, extra piston ring and Handle will come separately

AC LPG Pump Techanical Secification:

  • Pump Type :Manual LPG Pump Piston Type 4 way non Return Valve Arrangement
  • Pump Make :Klassic
  • Pump Model : MMLPG-1,
  • Suction x Delivery Sizes : - " x "
  • Pump Capacity : 15 kg/15 Minute i.e. 1 kg/Minute , depend on nos of stroke per minute,
  • Maximum Pressure : 20 kg/cm2
  • Pump Weight : 6 kg approx

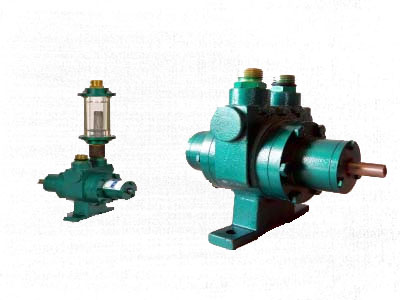

Rotary Vane Pumps



Rotary Vane Pumps



Material Of Construction:

Standard Cast Iorn Construction With Bronze Vane

AC LPG Pump Techanical Secification:

  • Pump Type : Rotary Vane Pump
  • Pump Make :Klassic
  • Pump Model : RV-1
  • Suction x Delivery Sizes : " x "BSP
  • Pump Capacity :7 kg/minute
  • Maximum Pressure : 15 kg/cm2
  • Pump Weight : 5 kg approx (with out motor)



Required Motor Specifications:

1 hp x 2900 rpm , Non Flame Proof Motor Totally enclosed Fan cooled Squirrel cage Induction Motors Horizontal Foot mounted B3 Construction, Continuously rated S1 Duty suitable for single phase , 220 volts , 50 Hz , AC Supply (110 volts or 60 Hz Available on request) with ambient 45c & class "F" Insulation.
