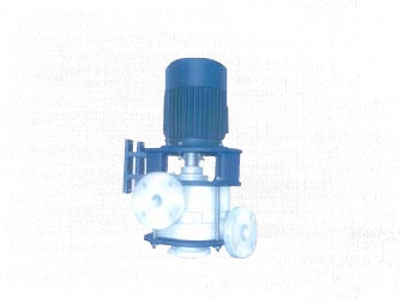

Vertical Glandless PP Pumps





Vertical Glandless PP Pumps



Salient Feature Of Vertical Glandless Pump:

  • No mechanical seal, stuffing box and internal bearings provided. .
  • No maintenance since the pump can even run dry indefinitely as there is no packing, bushes or internal Bearings.
  • Reduction of downtime production losses in view of above features.
  • All the wet-end parts are in solid molded construction to with stand corrosion and erosion.
  • The impeller is semi-open type used in our all-vertical pumps to suit both clear and polluted fluid
  • Pump mounted outside the suction tank and is not submerged type.
  • Polypropylene are manufactured by solid injection molding process with high pressure hence.



Operation Advantages Of Glandless Pump:

  • The recognizable leading improvement is the deletion of problems get to your feet from the use of powered seal, insulation box and inside bearing.
  • The aptitude of pump to run dry eliminates single reason of interruption which is regularly attributable to the human component this feature is very convenient in process needing continuous transference of a corrosive fluid with a high gradation of reliability e.g. Disposal of acid effluent.
  • The glandless pumps lend itself to process incorporating automatic control of a pump discharge valve. The "controlled leakage" acts as an integral by-pass. The pump suffers no ill effects if the discharge valve is partially or fully closed.
  • The maximum main improvements to be derivative from the use of glandless pump are in the province of maintenance and following reduction in down time invention victims. Normal maintenance on the glandless pump is confined to lubrication of the driving.



Temperature Resistance:

  • PP 50 TO 80 C
  • PPH 90 TO 100 C.
  • PVDF 100 TO 115C

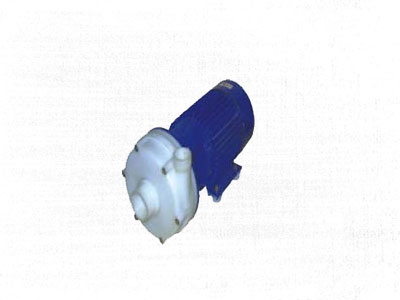

Poly Propylene Pumps-PP





Poly Propylene Pumps-PP





Applications :

Phosporic acid plants, Gas washing plants, Rayon plants, caustic joda plants for corrosive acids & basics, effluent treatment handling.

Model Hp Size Head in Mtr.
6 8 10 12 16 20
PP -2 0.5 25 x 25 0 110 120 90 - -
PP -3 1 25 x 25 0 150 142 118 60 -
PP -4 1.5 40 x 25 0 162 148 120 90 44

Features:

  • Small size bare / monoblac poly propelene pumps.
  • Fitted with seal / gland or PTFE bellow Mechanical seal.
  • Very economical models as pumps made with minimum parts.
  • Very easy maintanance.
  • Shaft is of SS-304 / 316 with ceramic coating and (PTFE coating optional).
  • Performance are at 2900 RPM, 50Hz and tested with clear water.
  • Due to constant R & D activity, details are subject to change without prior notice.

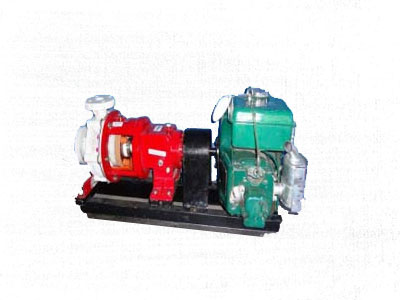

Poly Propylene Pumps-MHPP





Poly Propylene Pumps-MHPP





Applications:

  • Water treatment Plant
  • Effluent Treatment
  • Filter Press for dyes and chemicals
  • Fertilizer Plants Thermal and atomic power plants
  • Drugs & Pharmaceutical Industries
  • Scrubbing of corrosive gases like C12 , Br , I So2 , NH3 , F2 Etc.
  • Excellent for vacuum ejectors
  • Transferring of concentrated HCL from road tankers
  • Paper & Pulp industries
  • Pickling in steel rolling mills
  • Caustic soda plants :- Chlorinated Brine , Conc , HCL , Dilute H2SO4 etc.
  • PHOSPHORIC Acid Plants :- H3PO4 , H2SO4 , HF and their mixtures with or without solid (gypsum) up to 40% conc./
  • Gas Washing Plants :- Scrubbed Liquids containing CL2 , BR2 , F2 , I2 , SO2 , SO3 , CO2 , NH3 , Gases etc. with solids replace Hast Alloy.
  • Rayon Plants :- Spin bath solution (H2SO4 , ZNSO4 , NaSo4 , etc.)
  • Pumps are Available in different mounting constructions like Horizontal Bare pump , Monoblock pump and Vertical pump
  • Pumps are supply with PTFE Gland Packing or Mechanical seal fitted.
  • Polypropylene parts are manufactured by solid injection molding process.
  • Mechanical seal are provide of Ceramic / GFT Face or Silicon face with Teflon bellow as per application.
  • Gland Packing are used of PTFE Impregnated or PTFE Graphite reinforced as per application Suitable for continuous service.

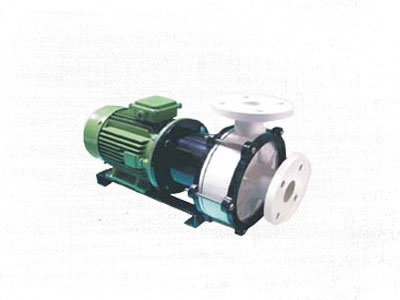

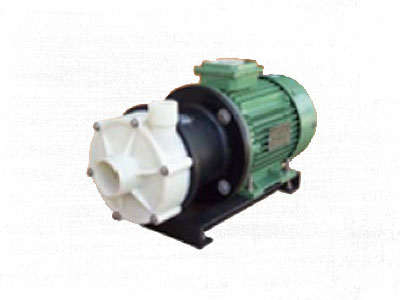

Magnetic Driven PP Pumps





Magnetic Driven PP Pumps



Magnetic Driven PP Pumps



Applications & User Industries :

Ideal for transfer of corrosive chemicals , plating chemicals , acids , dyes , solvents , toxic & fuming liquids , petrol , kerosene etc. Useful in chemical industries , pharmaceuticals and food processing industries. Electroplating , Galvanizing / Anodizing plants . Laboratory equipments and PCB palnts . Medical equipments and X-Ray film plants. Textile Dyeing houses . Liquid dispencing machines and Chemical Filtration equipments. For hazardous duty conditions with flame proof motors.High Efficiency due to permanent magnet power coupling.



About Magnetic Pump:

  • Magnetic drive design eliminates the conventional method of shaft coupling. Hence the pump casing is fully sealed from drive end which gives away the use of conventional sealing system . There is no seal used and hence no troublesome seal repairing and replacement , leakage and production lost. Impeller and drive magnets are permanent rare earth magnets. They prevent slippage and ensure that full motor horsepower is converted into pumping power.
  • All pumps are Centrifugal Semi-Open Impeller Type pumps and need priming before start up.
  • All Pumps are rated for continuous duty with class "E" Insulation.
  • SS-316 Magnetic pumps are available upto 5 HP



Range:

  • Capacity : from 10 LPM upto 750 LPM.
  • Head : upto 40 mtrs.
  • Material of Construction : Poly Propylene Glass Filled , PVDF upto 110 Deg C & SS-316
  • Operating Temp : PP upto 80 deg C , PVDF upto 110 deg C
    Special Pumps for high temperature upto 150C and 250C for SS-316



Advantageous Features :

100% Leak Proof pumps due to magnetic drive arrangement. No shaft seal used which automatically solves problems of seal leakage and wear & tear. Friction free operation for reduced power consumption. High power permanent magnets ensure full power transfer and eliminates slippage. All pumping parts are Non-metallic, Which gives superior corrosion resistance, Simple and easy to operate and maintain. Long life , reliable and trouble free operation.



Glandless PP Pump





Glandless PP Pump



Features:

Seal less
Gland less
Non magnetic driven Working principle: we have made shaft and stuffing box long and provide special arrangement in stuffing box with groove on shaft in such a way that liquid which come out from stuffing box will go back again to casing . Some liquid is may be come out but due to deep stuffing box it will remain in stuffing box and we have provide one hole in box which is connected to suction flange of pump by pipe line so liquid will again move to suction line and thus pump do not have any leakage from shaft . This pump is very ideal for solvents , acids and corrosives liquids where maintenance of mechanical seal is costly and also time consuming . Our complete CF series pumps will be soon available with above features and after some time we also give PP pumps with same features.

Water Rating Chart of:CFL

"CFS" SERIES
Model Hp Size Head in Metres Discharge in LPM at 2900 RPM
3 5 7 10 12 15 17 20 22 25 27 30 35 40
SPP-1 0.25 12 x 12 40 32 - - - - - - - - - - - -
SPP-2 0.5 25 x 25 - 100 45 - - - - - - - - - - -
SPP-3 1 25 x 25 - - 140 120 70 35 - - - - - - - -
SPP-3A 1 38 x 38 - - 181 95 50 - - - - - - - - -
SPP-4A 1.5 38 x 38 - - - - - 160 130 90 75 - - - - -
SPP-4B 1.5 50 x 50 - - - - - 250 166 85 - - - - - -
SPP-5A 2 38 x 38 - - - - 225 190 155 105 78 40 - - - -
SPP-5B 2 50 x 50 - - 330 250 160 80 - - - - - - - -
SPP-6A 3 50 x 38 - - - - - - 250 220 180 135 108 50 - -
SPP-6B 3 50 x 50 - - - - - 330 300 280 225 150 85 - - -
Model Hp Size Head in Metres Discharge in LPM at 2900 RPM
16 20 24 28 32 36 40 44 48
SPP-7A 5 50 x 38 - - 260 230 190 145 90 - -
SPP-7B 5 50 x 50 400 370 300 230 180 - - - -
SPP-8A 7.5 50 x 38 - - 290 280 250 225 190 120 60
SPP-8B 7.5 65 x 50 500 450 385 280 230 - - - -
SPP-9A 10 50 x 38 - 500 480 470 450 410 350 290 190
SPP-9B 10 65 x 50 560 510 450 370 280 210 150 - -
