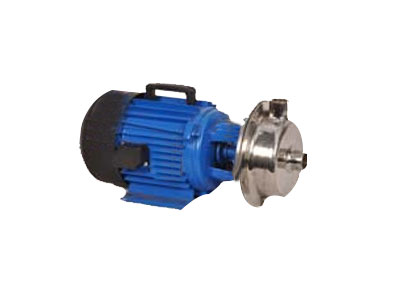

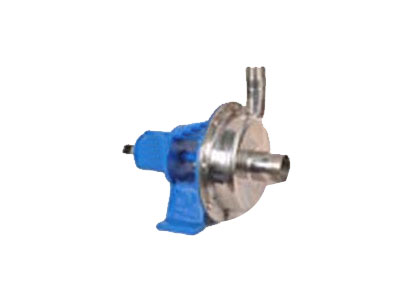

Centrifugal Pumps



Water Rating Chart of : SCF

"CFS" SERIES
Model Hp Size Head in Metres Discharge in LPM at 2900 RPM
3 5 7 10 12 15 17 20 22 25 27 30 35 40
SCF-1 0.25 12 x 12 40 32 - - - - - - - - - - - -
SCF-2 0.5 25 x 25 - 100 45 - - - - - - - - - - -
SCF-3 1 25 x 25 - - 140 120 70 35 - - - - - - - -
SCF-3A 1 38 x 38 - - 181 95 50 - - - - - - - - -
SCF-4A 1.5 38 x 38 - - - - - 160 130 90 75 - - - - -
SCF-4B 1.5 50 x 50 - - - - - 250 166 85 - - - - - -
SCF-5A 2 38 x 38 - - - - 225 190 155 105 78 40 - - - -
SCF-5B 2 50 x 50 - - 330 250 160 80 - - - - - - - -
SCF-6A 3 50 x 38 - - - - - - 250 220 180 135 108 50 - -
SCF-6B 3 50 x 50 - - - - - 330 300 280 225 150 85 - - -
Model Hp Size Head in Metres Discharge in LPM at 2900 RPM
16 20 24 28 32 36 40 44 48
SCF-7A 5 50 x 38 - - 260 230 190 145 90 - -
SCF-7B 5 50 x 50 400 370 300 230 180 - - - -
SCF-8A 7.5 50 x 38 - - 290 280 250 225 190 120 60
SCF-8B 7.5 65 x 50 500 450 385 280 230 - - - -
SCF-9A 10 50 x 38 - 500 480 470 450 410 350 290 190
SCF-9B 10 65 x 50 560 510 450 370 280 210 150 - -



Features:

  • As all pumps are made from rolled stainless steel, mechanical properties are far superior then cast material.
  • Pore free, non-pitting and non-adhering smoother surface, so less friction losses, and less crevice corrosion.
  • Super finish surface also ensure no ingress or emission of germs or impurities
  • Pumps are highly energy efficient and requires less NPSH to function without cavitation
  • Pump can handle liquids having viscosities up to 1500 centipoise
  • The pumps can work under a vacuum of 720 mm of Hg, suitable for vacuum evaporators.
  • Pumps are available with closed/semiopen impellers.
  • The best elastomers are used in the pumps to provide optimum resistance for high temperatures and chemicals.
  • Minimum working / rotating parts
  • Safe and quite operation levels.
  • Gentle product handling with lower maintenance and downline cost.
  • Dynamically combinations of seal faces as per customer's requirement (single seal / double seal, seal external cooling)
  • Suitable for standard motor or flange type or foot cam flange type motor or engine
  • Monobloc or bare pumps or with trolley
  • Also with flame proof motors
  • Various types of connection like - tri'clove joints SMS, Flanges or threaded nipple/coupling

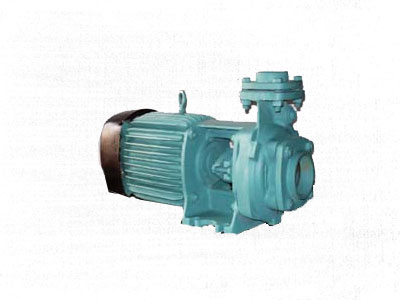

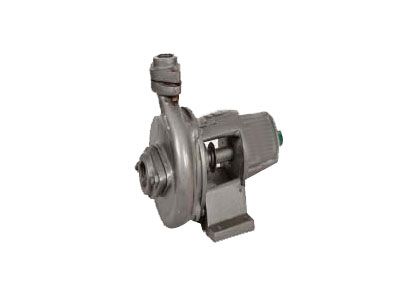

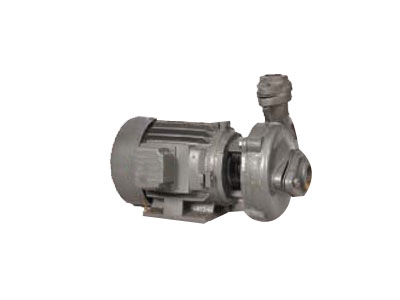

Monoblock Centrifugal Pumps



Features:

  • Can withstand wide voltage fluctuation - from 300-440 volts.
  • Suction lift up to 7.5 meters.
  • Top flat efficiency curve : minimum variation in efficiency in entire operating range
  • Efficiency at par with internationally available pumps - higher up to 10 points than minimum required by Indian standards specification
  • Models are with IP - 44 protection. Models with IP - 55 protection are also available on request
  • Inside and outside of pump covered by anticorrosive paint
  • Continuous rated motor
  • Designed for automatic air release during priming
  • Replaceable wearing parts and hence longer life
  • Dynamically balanced rotating parts ensure minimum vibrations
  • Designed to prevent overloading and motor burning
  • Class of insulation 'B' ( 'F' Class for 9.3 kw and 11.0 Kw ratings).

Optional Supply:

  • Impeller: Bronze / Stainless Steel
  • Shaft : Stainless steel
  • Shaft Sleeve :Chrome Steel



Applications:

  • Industries for clear water handling .
  • Water supply for domestic use in apartments, Buildings and hotels.
  • MMP Series Three Phase Pumps : Single stage, High speed horizontal, Centrifugal , Monobloc with volute type delivery casing

Range:

  • Head : 6-52 meters
  • Capacity : 19.0-2.0 liters per second
  • Power rating : 0.37 Kw to 5.5 Kw (0.5 HP to 7.5 HP )

Material Of Construction Standard Supply:

  • Impeller: Cast iron
  • Delivery casing :Cast iron
  • Motor body : Cast iron
  • Shaft : EN -8
  • Shaft Sleeve :SS-410

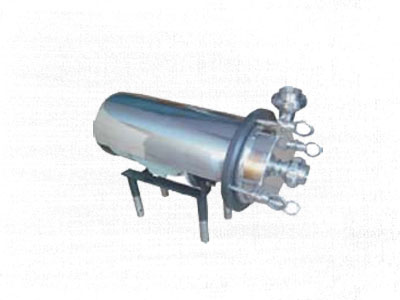

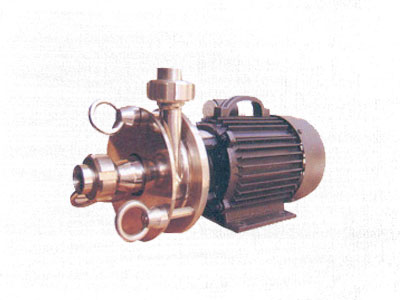

Sanitary Pumps



Model Hp Size Head in Metres Discharge in LPM at 2900 RPM
3 5 7 10 12 15 17 20 22 25 27 30 35 40
CFS-1 0.25 12 x 12 40 32 - - - - - - - - - - - -
CFS-2 0.5 25 x 25 - 100 45 - - - - - - - - - - -
CFS-3 1 25 x 25 - - 140 120 70 35 - - - - - - - -
CFS-3A 1 38 x 38 - - 181 95 50 - - - - - - - - -
CFS-4A 1.5 38 x 38 - - - - - 160 130 90 75 - - - - -
CFS-4B 1.5 50 x 50 - - - - - 250 166 85 at 18mtr - - - -
CFS-5A 2 38 x 38 - - - - 225 190 155 105 78 40 - - - -
CFS-5B 2 50 x 50 - - 330 250 160 85 - - - - - - - -
CFS-6A 3 50 x 38 - - - - - - 250 220 180 135 108 50 at 33mtr
CFS-6B 3 50 x 50 - - - - - 330 310 300 250 160 85 - - -
Model Hp Size Head in Metres Discharge in LPM at 2900 RPM
16 20 24 28 32 36 40 44 48
CFS-7A 5 50 x 38 - - 260 230 190 145 90 - -
CFS-7B 5 65 x 50 400 370 300 230 180 - - - -
CFS-8A 7.5 50 x 38 - - 290 280 250 225 190 120 60
CFS-8B 7.5 65 x 50 500 450 385 280 230 - - - -
CFS-9A 10 50 x 38 - 500 480 470 450 410 350 290 190
CFS-9B 10 65 x 50 560 510 450 370 280 210 150 - -



Features:

  • Pumps with adjustable legs, available in request.
  • Various types of connection like - tri'clove joints SMS, Flanges or threaded nipple/coupling
  • Also with flame proof motors
  • Monobloc or bare pumps or with trolley
  • Suitable for standard motor or flange type or foot cam flange type motor or engine
  • Dynamically combinations of seal faces as per customer's requirement (single seal / double seal, seal external cooling)
  • Gentle product handling with lower maintenance and downline cost
  • Safe and quite operation levels.
  • Minimum working / rotating parts
  • The best elastomers are used in the pumps to provide optimum resistance for high temperatures and chemicals.
  • Pumps are available with closed/semiopen impellers.
  • The pumps can work under a vacuum of 720 mm of Hg, suitable for vacuum evaporators.
  • Pump can handle liquids having viscosities up to 1500 centipoise
  • Pumps are highly energy efficient and requires less NPSH to function without cavitation
  • Designed for CIP (clean in place) or manual cleaning
  • Super finish surface also ensure no ingress or emission of germs or impurities during pumping or idling which is basic requirement of sterlie / hygienic application
  • As all pumps are made from rolled stainless steel, mechanical properties are far superior then cast material.
